Louver Windows are divided into:Aluminum glass Louver and all aluminum louver window

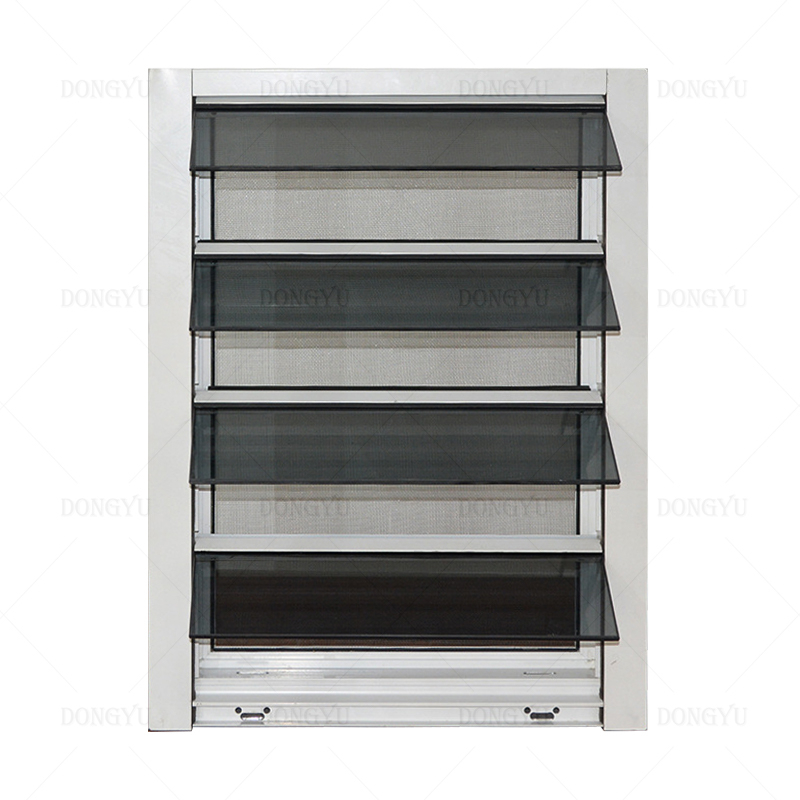

Aluminum glass louver windows combine adjustable ventilation with modern aesthetics, featuring interlocking tempered glass blades within a durable aluminum frame system. Designed for architectural projects requiring both airflow control and natural light penetration.
Technical Specifications:Frame System 6063-T5 aluminum alloy extruded profiles;2.0mm minimum wall thickness; Thermal break technology (optional);Powder coating/PVDF finishes
Blade material for the blinds is available for selection: 8-12mm tempered glass louvers; Standard clear glass; options include Frosted/patterned glass; Low-E coated glass; Tinted glass(bronze/gray/blue);All aluminum ;15°-75° adjustable blade angle
Operational Mechanism：Parallel linkage system for synchronized blade movement；Manual gear operation (standard)；Motorized control (optional) with: Wall switch；Remote control；Smart home integration
Configuration Options：Blade Sizes 100mm/125mm/150mm width；Frame Colors 200+ RAL colors available；Control Systems Manual crank handle；Electric motor (24V DC)；Smart app control；Special Features Rain sensor auto-close；Insect screens；Security locks
Competitive Advantages：
Precise Airflow: Control Adjustable blade angles
Natural Light Optimization: Glass blade design
Weather Resistance: IP54 rated components
Low Maintenance: Anodized aluminum construction
Custom Solutions: Project-specific engineering available
