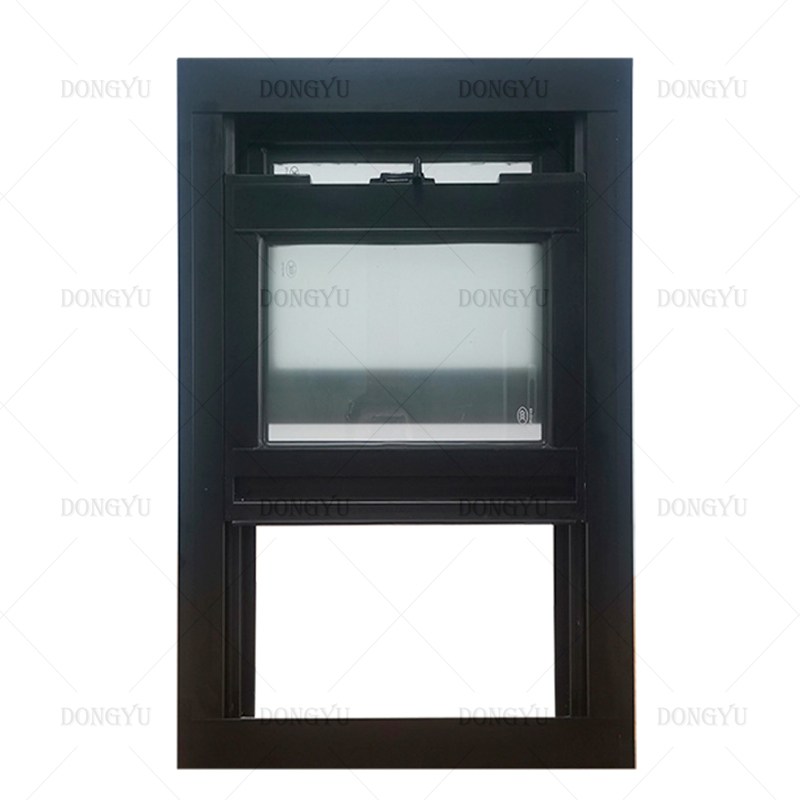

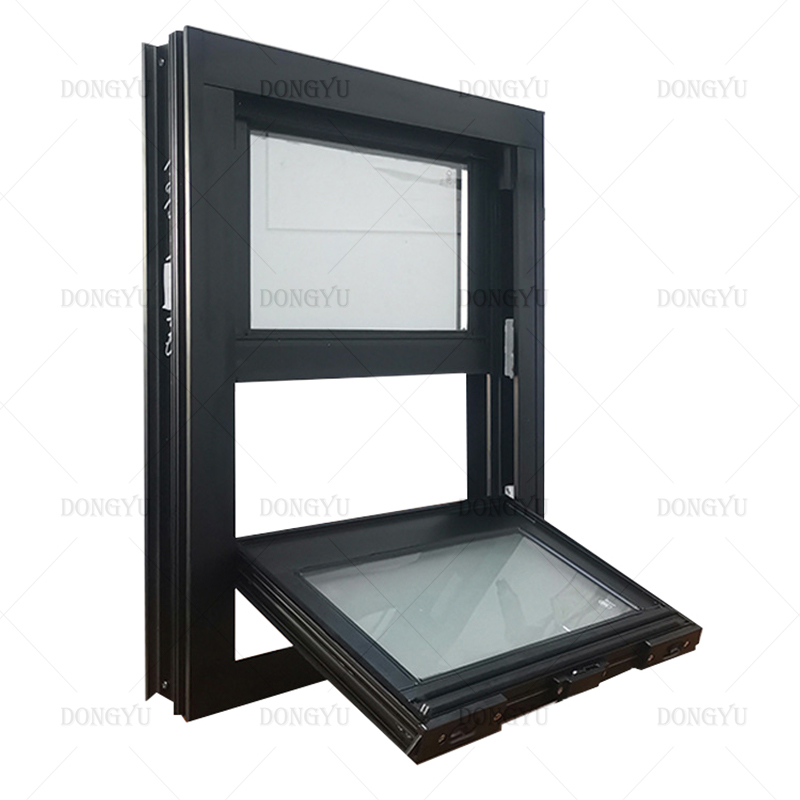

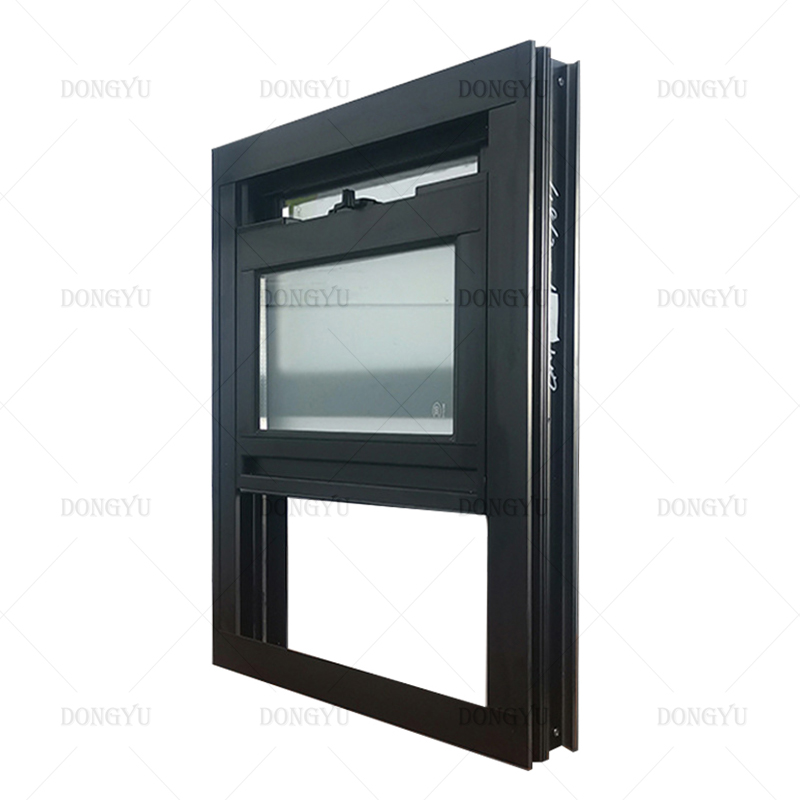

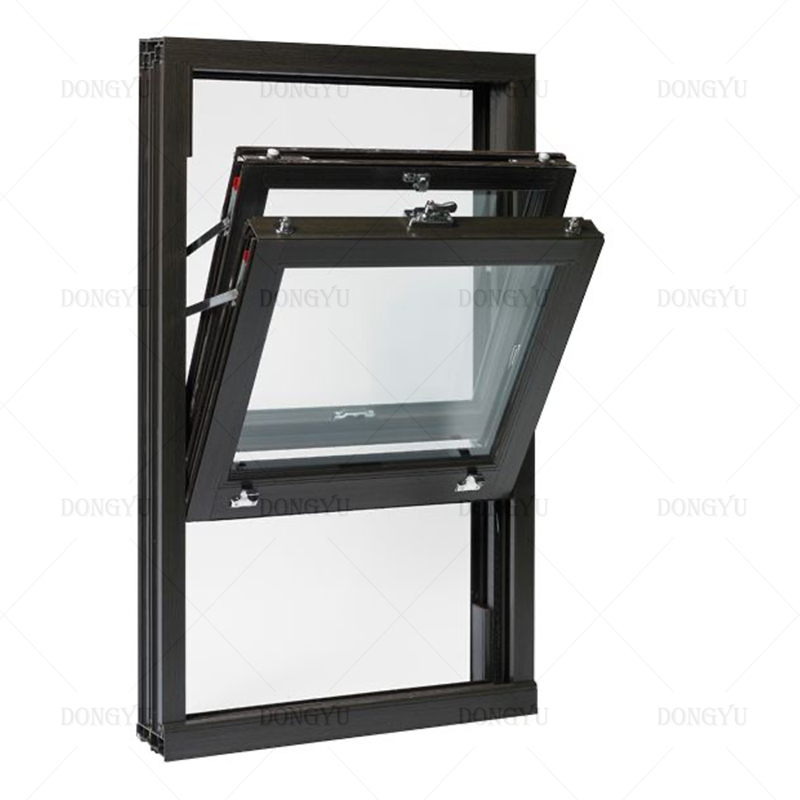

Aluminum Glass Hung Windows
Aluminum glass hung windows are an innovative vertical opening system that combines high-strength aluminum profiles with tempered glass. Utilizing a precision balance system, the window sashes move vertically, maintaining traditional ventilation and lighting functions while solving space-occupation issues common with outward/inward-opening windows. Ideal for modern architecture requiring both space efficiency and aesthetic appeal.
Vertical Lift System:
German-imported balance devices (spring/hydraulic options)
Sashes can be fixed at any height
Operation Mode:Manual/electric options
Premium Profile Structure：
6063-T5 aircraft-grade aluminum main frame
2.0mm wall thickness reinforced profiles
Optional multi-chamber thermal break structure
Safety Glass Configuration：
Standard 5+12A+5mm insulated tempered glass
Optional:6mm single-pane tempered glass;Laminated safety glass;Low-E energy-saving glass
Outstanding Performance:
Wind resistance: Class 9 (GB/T7106)
Water tightness: Class 5 (GB/T7106)
Air permeability: Class 6 (GB/T7106)
Sound insulation: Up to 35dB (GB/T8485)
Space Efficiency:
No interior/exterior swing space required
Ideal for narrow spaces and special installations
Flexible Ventilation Control:Precise height adjustment，Optimized airflow management
Safety & Reliability: Anti-drop safety devices;Child safety locks
Elegant Aesthetics:Minimalist frame design;Multiple surface treatments (powder coating/fluorocarbon coating/wood grain)
Easy Maintenance:Built-in drainage system; Self-cleaning track design
Customization Services:Size customization ;Color customization (RAL color chart available)
